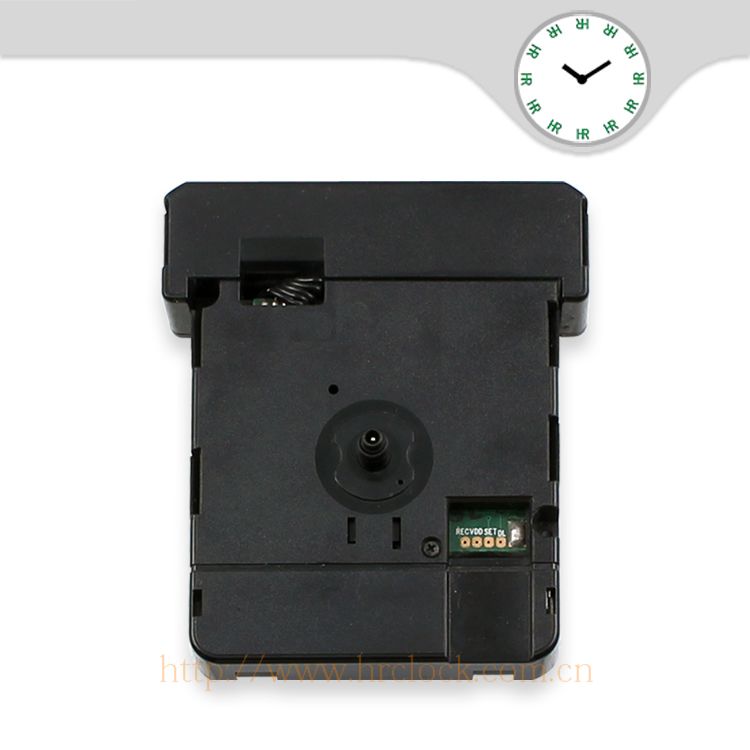

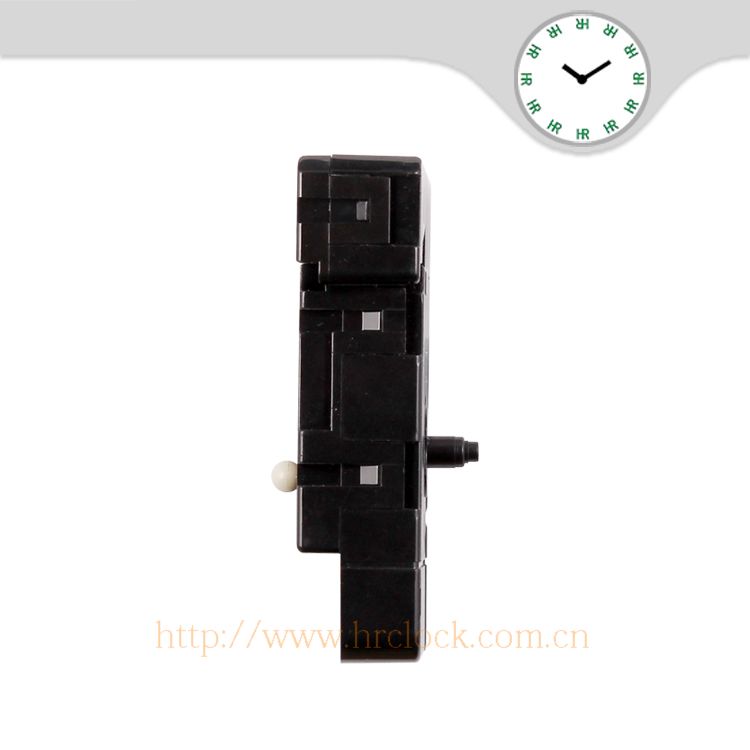

CH899-7  DCF radio controlled clock movements

CH899-7 DCF radio controlled clock movements

CH899 DCF-7 Radio controlled clock movements

0.00
0.00


CH899 DCF-7 Radio controlled clock movements

Radio controlled clock movements Technical parameter explanation

Name Radio clock movement
Model CH899RCS
Size 90*65.5*18.5mm
axial length 7MM
Receiving Frequency DCF MSF JJY WWVB BPC
77.5KHz 60KHz 40/60KHz 60KHz 68.5KHz
Battery LR6/AA
Battery Life one year
Operating Voltage 1.3~1.7V
Quartz Accuracyat1.4V23℃±3℃ ±1s/d
Operating Temperature 0℃~55℃
Storage temperature -10℃~60℃
Sensitivity typ.70uv/m typ.70uv/m typ.50uv/m typ.50uv/m typ.60uv/m
Receive Time 3~10min
Automatic Fiduciary 12x/day
Chasing Time after Fiduciary 5′45″max
Second Torque(1.5V) 180uNm
Minute Torque(1.5V) 750uNm
Working Nose 35dB
