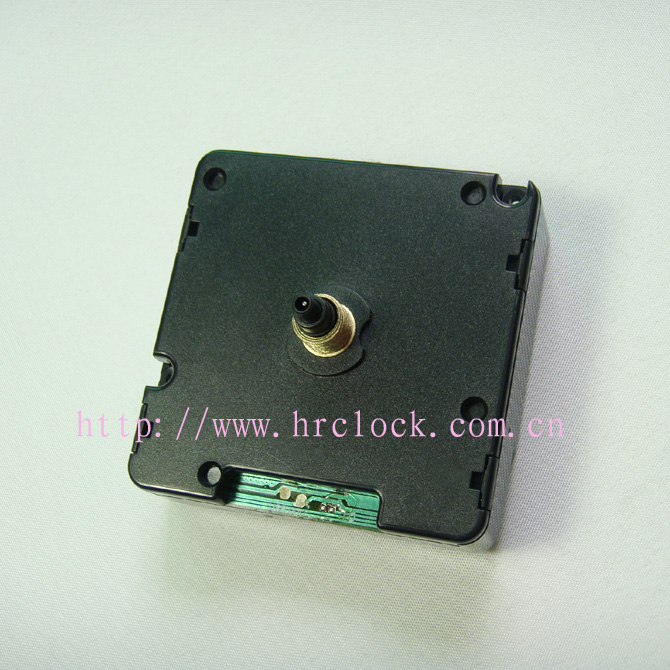

DCF Radio clock movement
Receiving frequency : 77.5KHz(DCF)

Shaft length:14.5mm,17mm,24mm

Battery size : LR6/AA

Battery life : approx 1 year

operating voltage : 1.25V~1.7V

Quartz adjustment: : ±1s / d

Operating temperature : -5℃~+55 ℃

Storage temperature : -20℃~+70 ℃

Current consumption (1.5V) : Less than 150 μA

Receiving time : 3~8 min (DCF/MSF)  3~16min(JJY)

Receiving current : Less than 100 μA

Setting time after reception : max. 4min

Operating noise : Less than 32dB

Antenna : Ferrite core internal

Reception : 12x/day

Peak current : Less than 7mA

Sensitivity : Less than 80μV/m

Second hand torque (1.5V) : ≥ 180μNm
