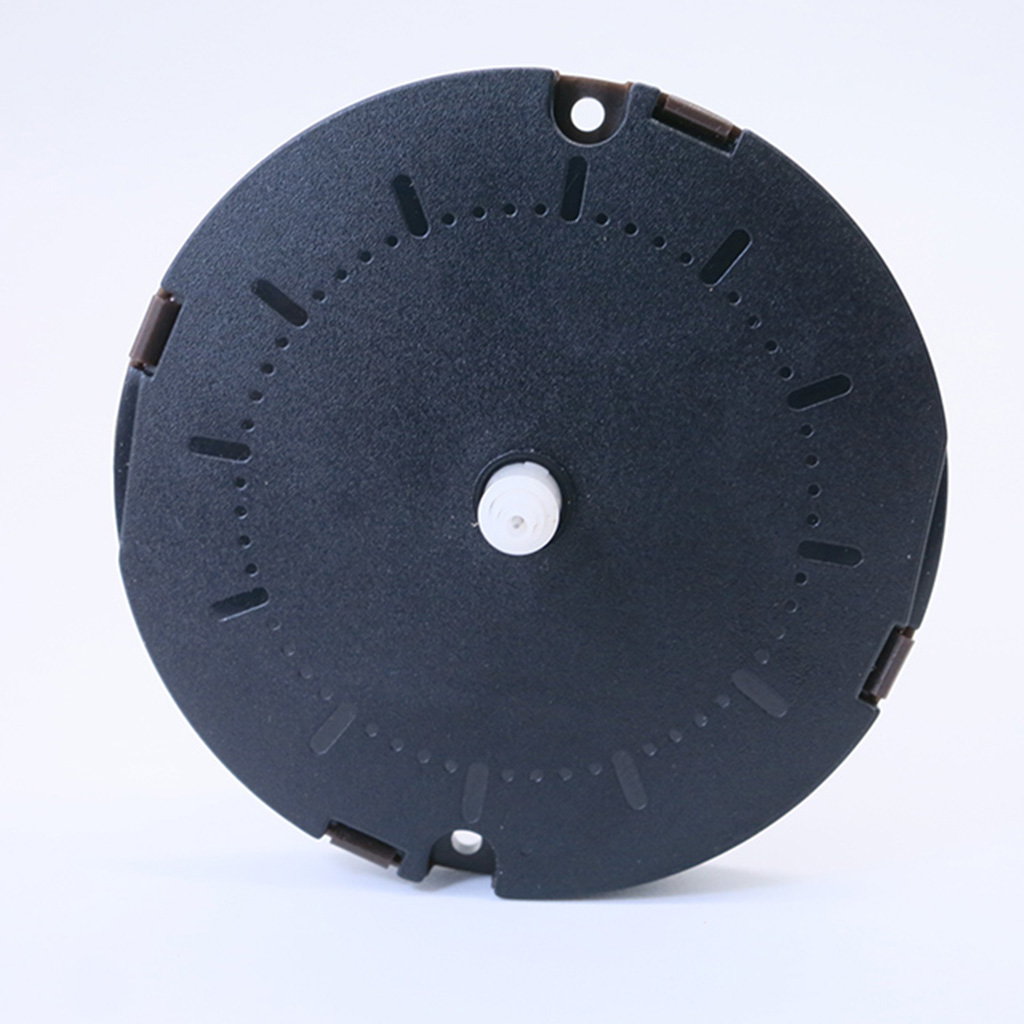

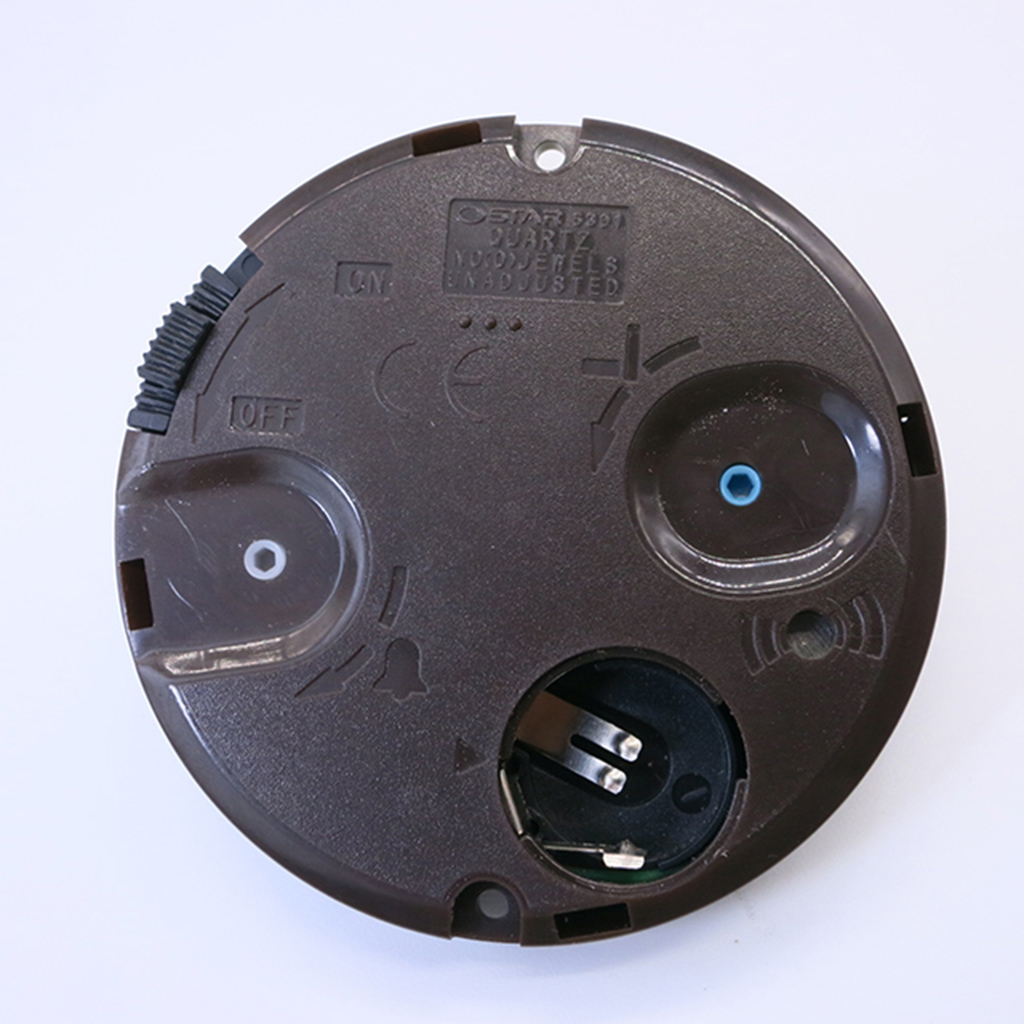

Model: a diameter of 50 mm small circular movement;

Size: positive 50 mm diameter, the thickness of 8.2 mm;

The axial length: the total axial length is 3.6 mm;

Accessories: 1 PCS black knobs, 1 PCS black battery cover, 1 PCS button cell, 1 PCS insulation slices.

Packing: 500 PCS/CTN, gross weight 8 kg, 0.043 m after

Circular movement parameters:

Poor: the average instantaneous, plus or minus 2 SEC/day at 1.5 v, 23 ℃

Working voltage: DC1.25 V ~ 1.7 V

Working temperature: - 10 ℃ to 50 ℃

The average power consumption current: 35 mu A or less at 1.5 V

Battery/life: LR44/8 up

Torque: Max Torsional Load On the Second shaft or 40 mu NM

Purpose: wooden clock, ceramic clock, cardboard clock, plastic clock, toys, clocks and other crafts
