Plastic quartz clock insert

Plastic quartz clock insert

0.00
0.00
model:
size:
The material:
The quality of:

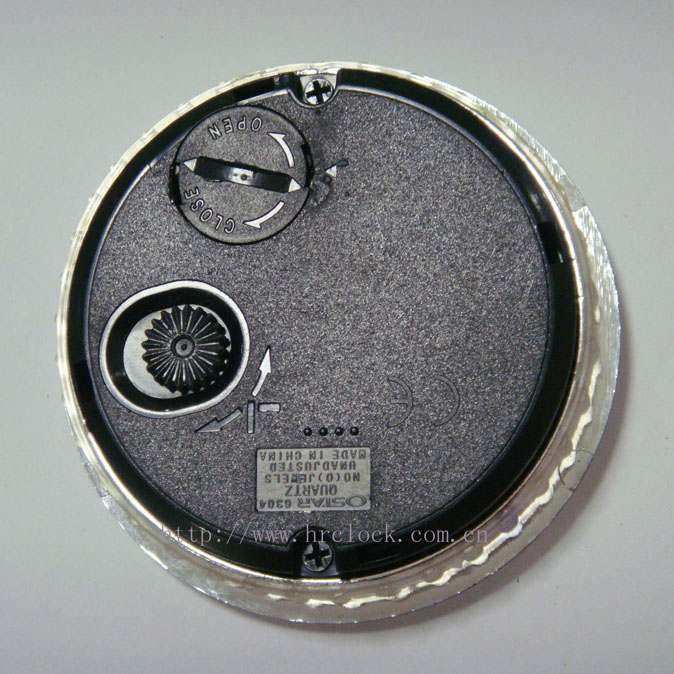

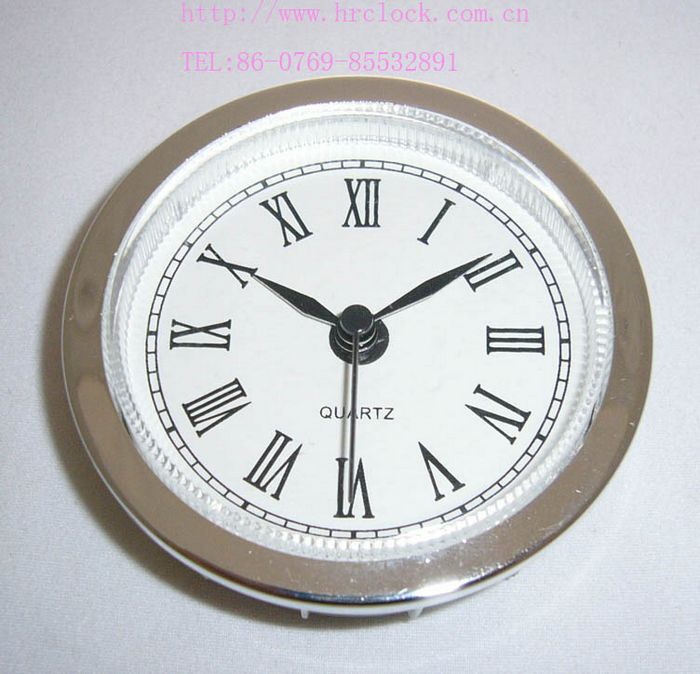

Plastic quartz clock insert

model NO:HR-C061

material :ABS

color frame in gold or in siler .

Oscillator Frequency: 32.768KHz

Average deviation: ± 1 sec / day at 1.5v, 23 ℃

Operating voltage: 1.3v to 1.7v

Operating temperature: -10 ℃ to 50 ℃

Circumference output frequency: 0.5Hz

Weight: approximate 34 g w / o battery

Second hand output torque: ≥ 1.6gf-cm (1.5V)

The minute hand the output torque: ≥ 30gf-cm (1.5V)

Power Supply: 1.5v

Power Type: R4 1 piece

Battery Life: 1 year

The average current consumption: under 120uA at 1.5v

Hours of needle required: Second Minute Hour

Plastic quartz clock insert assembly in wooden crafts, plastic ornaments, crystal handicraft, acrylic decorations, resin handicraft purposes.
